- EWCO 1200 Electrolyzed Water System - Generate Electrolyzed Oxidizing Water (EOW)
- Generating EOW from the electrochemical activation (ECA) of saltwater was developed in the 1970s.
- Effective against COVID-19 and other dangerous pathogens.
EASY TO USE
Turn on the system and in minutes you generate Electrolyzed Oxidizing Water (EOW) also known as Electrolyzed Water.
The ingredients and byproducts of our system are harmless to humans and the environment.
In every system, we include our additive tank, installation kit, operation manuals, test strips, and all the information you might need.
You can choose from several settings to produce up to an outstanding amount of 24 Liters every minute
FREQUENTLY ASKED QUESTIONS
NORWEGIAN CRUISE LINES
THE PREMIER INNOVATOR FOR OVER 51 YEARS
EWCO systems are installed on all Norwegian Cruise Line ships including Oceania and Seven Seas ships. NCL, the innovator in cruise travel, uses EWCO systems to generate FDA cleared electrolyzed water to clean and sanitize food contact surfaces as well as directly on food for raw fish & seafood, fruits, and vegetables prior to preparation. Norwegian Cruise Lines uses the EWCO 1200 systems to generate high concentrations of electrolyzed oxidizing water for generalship sanitation and the prevention of Norovirus.

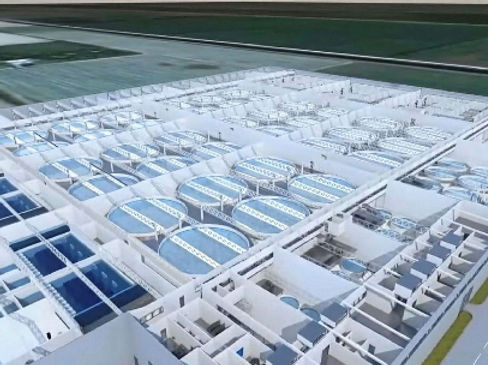

THE LARGEST LAND-BASED GROWER OF SALMON IN THE US
Atlantic Sapphire is poised to produce 90,000 tons of salmon annually. EWCO was chosen to provide electrolyzed water systems to generate Electrolyzed Oxidizing Water (EOW) for safe and eco-friendly processing of all the fish.
OVER 5,000,000 SYSTEMS SOLD AROUND THE WORLD
1200 LITERS PER HOUR OF ELECTROLYZED OXIDIZING WATER (EOW)

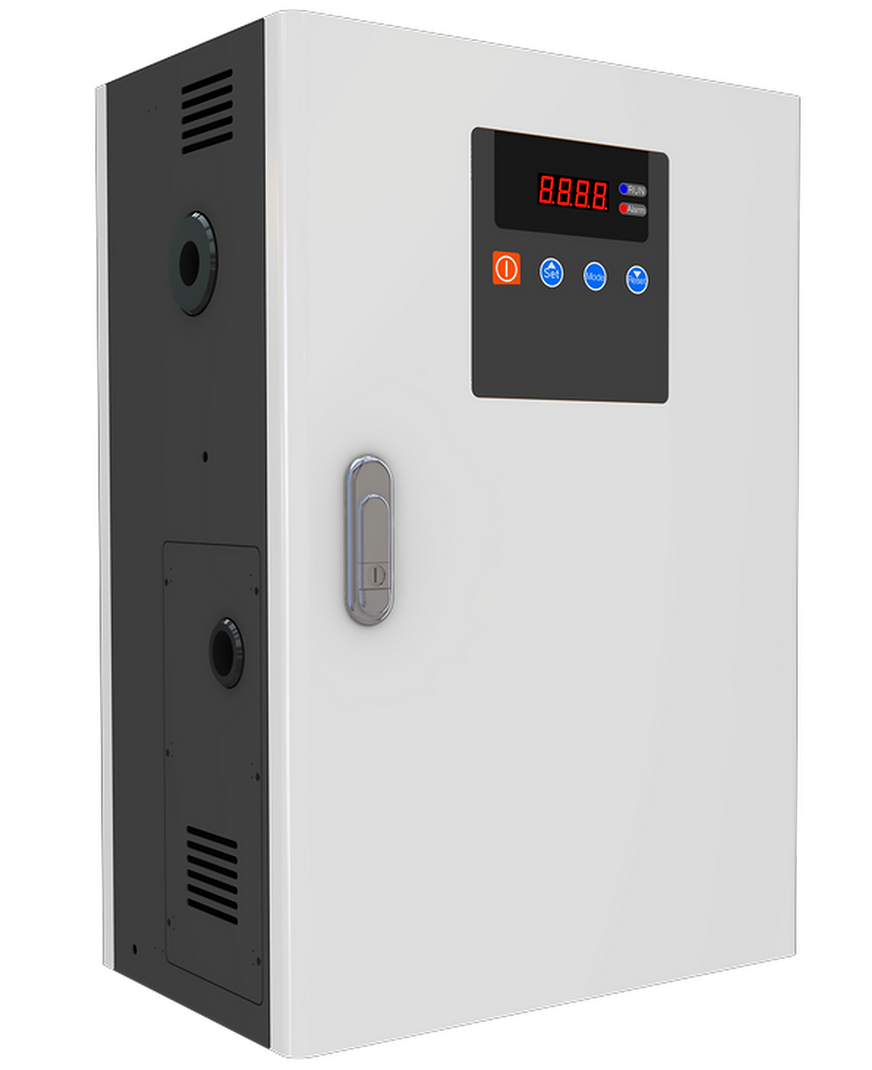

The EWCO 1200 system is an industrial-grade, low-maintenance, single-stream system that generates Electrolyzed Oxidizing Water (EOW) in solution through the electrolysis of salt and water. The system is capable of producing 1200 Liters of EOW up to 400 PPM in 20-hour work cycles.
The system uses patented electrolysis cells that are unique in that they generate a stable molecule that is electrically neutral and with high oxidation potential, contributing to its effectiveness against microbial pathogens.
|Water Disinfection at 4 ppm FAC||
300 L/min. or 18,500 L/hr.
|Water Disinfection at 3 ppm FAC||
400 L/min. or 24,000 L/hr.
|Water Disinfection at 2 ppm FAC||
600 L/min. or 37,000 L/hr.
|Water Disinfection at 1 ppm FAC||
1200 L/min. or 72,000 L/hr.
|Concentration at 24L/min (6 gal./minute)||
50 ppm FAC or 10-20 ppm by decreasing amperage setting
|Concentration at 20L/min (5.3 gal./minute)||
60 ppm FAC
|Concentration at 18L/min (4.8 gal./minute)||
70 ppm FAC
|Concentration at 16L/min (4.2 gal/minute)||
75 ppm FAC
|Concentration at 12L/min (3 gal./minute)||
100 ppm FAC
|Concentration at 6L/min (1.5 gal./minute)||
200 ppm FAC
|Concentration at 4L/min (1 gal./minute)||
300 ppm FAC
|Concentration at 3L/min (0.8 gal./ minute)||
400 ppm FAC
|Free Available Chlorine (FAC)||
300 ppm FAC (*400 ppm)
|HOCl Production Rate||
Up to 24 L/min.
≈ 11 g/min (or 660 g/hr.)
Food Grade Salt (no iodine)
|Maximum Amperage Setting||
≈ 3.41 kilowatt per hour
|Oxidation-Reduction Potential (ORP)||
> 1000 mV
Acidic to Neutral (pH5-pH8) - adjustable by additive & system settings
10 to 400 ppm - see more details
Hypochlorous Acid (HOCl)
21.2 kg (47 lbs.)
35 x 24 x H 52 cm (13.8 x 9.5 x 20.5 inches)
304 Stainless Steel
Single Cell, Single Stream, Non-membrane Electrolysis
EWCO 1200 System - see system comparison
